NG Flight Instruments

Du selector
The NG's have 6 Display Units (DU's), these display the flight instruments; navigation, engine and some system displays. They are controlled by 2 computers - Display Electronics Units (DEU's). Normally DEU 1 controls the Captains and the Upper DU's whilst DEU 2 controls the F/O's and the lower DU's. The whole system together is known as the Common Display System (CDS).

The DU's normally display the PFD's outboard, ND's inboard, engine primary display centre (upper) and engine secondary display lower. Although they can be switched around into almost any other configuration with the DU selector (shown left).

The CDS FAULT annunciation will only occur on the ground prior to the second engine start, it is probably a DEU failure but is in any case a no-go item. If a DEU fails in-flight, the remaining DEU will automatically power all 6 DU's and a DSPLY SOURCE annunciation will appear on both PFD's. The nomenclature requirements for these annunciations were developed by Boeing Flight Deck Crew Operations engineers during the early design phase of the 737NG program. The intent of the design function is as follows:
· The CDS FAULT message is intended to be activated on ground to tell the maintenance crew or air crew that the airplane is in a non-dispatchable condition.
· The DISPLAY SOURCE message is annunciated in air to tell the crew that all the primary display information is from one source and should be compared with all other data sources (standby instruments, raw data, etc.) to validate its accuracy.
Since the DISPLAY SOURCE message is intended to be activated in air and CDS FAULT is intended to be activated on ground, air/ground logic is used by CDS to determine which message is appropriate. The air/ground logic system uses a number of inputs to determine airplane state. One of the inputs used is “engines running”. CDS uses the “engines running” logic as the primary trigger for changing the CDS FAULT message to its in-air counterpart. The “engines running” logic is used in case the air/ground data isn't correct as a result of other air/ground sensing faults.

The DISPLAYS - SOURCE selector is only used on the ground for maintenance purposes (to make all 6 DU's be powered by either DEU 1 or 2). This may be why the switch is a different shape to the other three; if not, it is still a good way to remember that this is a switch that pilots should not touch!

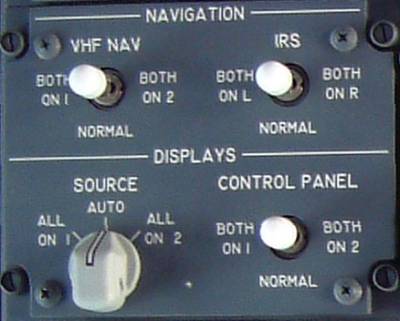

Instrtransferpanel ng

Instrument transfer switches - NG

The DISPLAYS CONTROL PANEL annunciation merely indicates that an EFIS control panel has failed. There is an additional, rather bizarre, attention getter because the altimeter will blank on the failed side, with an ALT flag, until the DISPLAYS - CONTROL PANEL switch is positioned to the good side. Note that this is not the same as the EFI switch on the -3/4/500's which was used to switch symbol generators.


EFIS Control Panel - NG


PFD - Primary Flight Display - NG

The speed tape shows minimum and maximum operating speeds. The maximum operating speed provides a 0.3g manouvre margin to high speed buffet. The minimum operating speed is computed from the SMYD as follows: The SMYD has two flavours of Min manouvre speed. The first is identified as Vmnvr, the second as Vbl (low speed buffet). The transition from Vmnvr to Vbl is dependent on gross weight, but in general Vmnver is output below 22,000 feet and Vbl above that altitude. Although not used directly in the calculation of Vmnvr, once the airplane starts flying, gross weight becomes a factor indirectly (in the calculation of Vmnvr) via the load factor calculation. FMC Gross Weight is used by the SMYD in the switching logic from Vmnvr (min man speed) to Vbl.

Pfd aoa
One of the many customer PFD options is an analogue/digital angle of attack display. The red line is the angle for stick shaker activation, the green band is the range of approach AoA.

CDS Block Points

The 737NG Common Display System has had several software updates to incorporate additional features, improvements to existing features and bug fixes. Each new update is known as a Block Point. eg BP98 to BP06.

New Approach Formats

With increased navigational accuracy available and hardware/software improvements on the 737, many new types of approaches have been developed. Cat IIIb, LNAV/VNAV, RNAV(GPS), RNAV(RNP), IAN, GLS.

Mfd buttons ng new

Cat IIIB ILS Is very similar to the current ILS display except that rollout guidance will display as "ROLLOUT" (armed) underneath the VOR/LOC annunciation. A new MFD button labelled "C/R" (Clear/Recall) is required to display system messages on the upper display unit. These messages could be either "NO LAND 3" or "NO AUTOLAND". Note Cat IIIa is still possible with a NO LAND 3 advisory. In this case green "LAND 2" annunciations will appear on both outboard display units.

LNAV/VNAV most non-precision approaches which are in the FMC database may be flown to MDA in LNAV/VNAV. Look for the coded GP angle in the LEGS pages.
Pfd nd nps

NPS (Navigation Performance scales) combine the display of ANP/RNP with LNAV/VNAV deviation to give either a Cat I approach of its own or a transition to an approach. Note: NPS provides crew awareness of airplane position with respect to the intended path and RNP. They are not required for VNAV approaches, which may be flown with standard displays.

IAN (Integrated Approach Navigation) gives an ILS look-alike display and allows the pilot to fly the approach like an ILS, ie by selecting APP on the MCP. It is a Cat I only approach system which uses the FMC to transmit IAN deviations to the autopilot and display system. Flight path guidance is from navigation radios, FMC or a combination of both. The type of approach must first be selected in the FMC. The flight mode annunciations will vary depending upon the source of the navigation guidance as follows:   {| border="1" height="57" width="784" | align="center" height="24" width="260"| | align="center" height="24" width="261"|Approach | align="center" height="24" width="261"|FMA |- | colspan="3" height="24" width="776"|Localiser based approaches: |- | align="center" height="24" width="260"| | align="center" height="24" width="261"|IGS | align="center" height="24" width="261"|VOR/LOC & G/S |- | align="center" height="24" width="260"| | align="center" height="24" width="261"|ILS with G/S out, LOC, LDA, SDF | align="center" height="24" width="261"|VOR/LOC & G/P |- | align="center" height="24" width="260"| | align="center" height="24" width="261"|B/C LOC | align="center" height="24" width="261"|BCRS & G/P |- | align="center" colspan="3" height="24" width="776"|

If FMC is used for course guidance:

|- | align="center" height="24" width="260"| | align="center" height="24" width="261"|GPS, RNAV | align="center" height="24" width="261"|FAC & G/P |- | align="center" height="24" width="260"| | align="center" height="24" width="261"|VOR, NDB, TACAN | align="center" height="24" width="261"|FAC & G/P |} Where FAC = Final Approach Course and G/P = Glidepath.

GNSS Landing System (GLS) Approaches use GPS and a ground based augmentation system (GBAS) to give signals similar to ILS signals and will probably replace ILS in the future. Certified May 2005, it is initially Cat I but will become Cat IIIB and should have the capability for curved approaches.

Most of the above approaches require FMC U10.5+, CDS BP02+, FCC -709+ and DFDAU & EGPWS.

Standby Flight Instruments

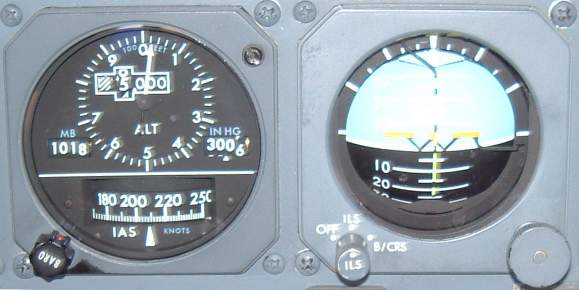

Fltinsts standby

The standby airspeed indicator & altimeter uses aux pitot & alternate static sources and no ADC/ADIRU’s.

Fltinsts standby ng

The Integrated Standby Flight Display started to appear in 2003 to replace the mechanical standby artificial horizon and ASI/Altimeter. Personally I find the new ASI & Altimeter much easier to read but the ILS more difficult. The + - buttons are just brightness controls.

The ISFD also sends inertial data to the FCCs which use the data during CAT IIIB approaches, landings and go-around.

Interestingly the ISFD cannot be switched off from the flightdeck - even by pulling the ISFD c/b on the p18 panel. It has its own dedicated battery and the ISFD c/b only removes power from the battery charger, so let us hope that one does not start to smoke in-flight! The battery will give 150 mins of power.

Standby compass

Finally, if all else fails there is a standby magnetic compass!

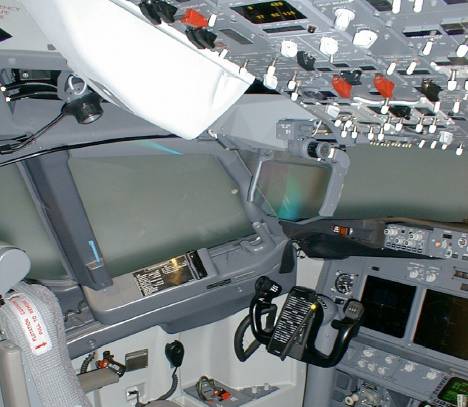

Head-Up Display


Head-up Guidance System installed in the 737-NG

HGS was certified for the 737 by the US FAA in 1994 to allow Cat IIIA landings down to 200m RVR and take-offs in 90m. The first production 737 HGS was fitted to a 737-300 of Morris Air (later bought by Southwest) delivered September 1995.

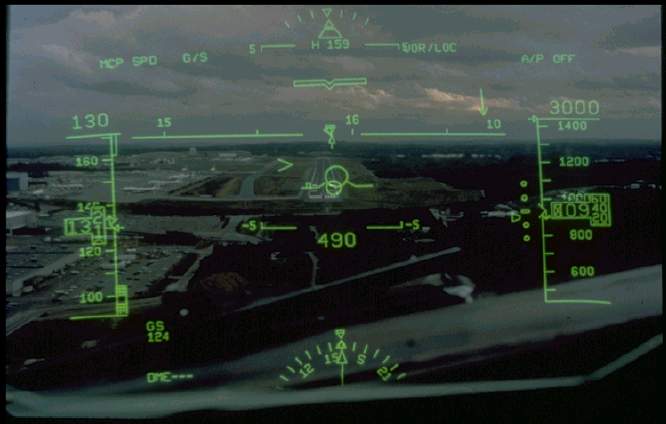

Hgs primarymodedisplay

Primary Mode Display

Flight Data Recorder (FDR)

The FDR is located above the ceiling above the rear galley. There have been several different models of FDR in the life of the 737 which can collect anything from 30 minutes to hundreds of hours of data of 8 to hundreds of parameters.

Early FDR's, as fitted to 737-200's, comprised metal scribes which etched their data into a 150ft long roll of metal foil. These would last about 300hrs but only recorded vertical acceleration, heading, IAS and altitude, plus binary traces such as date, flight number and time of R/T transmissions. A gauge on the panel (see below) shows the recording hours remaining before the foil spool needs replacing.

Later Digital FDR's (late 200's & classics) record onto a 1/4-inch wide, 450 feet long magnetic tape and the newest Solid State FDR's (later classics & NG's) record data onto memory chips.

Late model 737-3/4/500 FDR's record 25 hours of data. The protective casing includes an inner aluminium cover, isothermal protection shield, an outer stainless steel casing and an exterior stainless steel dust cover. This enables it to withstand a crush force of 20,000 pounds per axis, and provides impact protection of 1000 g's for 5 msec. It is protected from heat by an isothermal insulation which maintains the inner chamber at a safe temperature. It also has an underwater location device that transmits under water for a minimum of 30 days.

The FDR of the 737-NG is similar to that described above but can withstand 3400 g's of impact, 20,000ft depth of water and temperatures of 1,100C for 30mins.

The FDR starts recording as soon as the first engine oil pressure rises.

Electronic Flight Bag (EFB)

EFB is becoming the latest “must-have” device in the cockpit. They have the ability to do the following tasks:

  • Calculate take-off or landing performance.
  • Calculate weight & balance.
  • Contain the aircraft technical log.
  • Store navigation charts & plates.
  • Store company manuals, FCOMs, crew notices, etc.
  • Retrieve & display weather.
  • Display checklists.
  • Display on-board video surveillance cameras.

The advantages to crew are the accuracy of the data and ease of use. The advantages to the airlines are the cost benefits of a less paper cockpit and real time data transfer.

There are three classes of EFB:

  • Class 1: Fully portable. Eg a laptop.
  • Class 2: Portable but connected to the aircraft during normal operations. Eg tablet & docking station.
  • Class 3: Installed (non-removable) equipment.

BBJ Avionics

The Boeing Business Jet stands at a crossroads in avionics technology—exploiting all the flight deck systems available to airlines operating the 737, while serving as a showcase for advanced bizjet avionics that air carriers may one day want.

The BBJ often serves as a pathfinder for the latest systems that eventually could find their way onto commercial 737 flight decks.

Improved situational awareness is a case in point. Gulfstream, for example, pioneered the use of enhanced vision systems (EVS) with a forward-looking infrared (Flir) camera on large-cabin bizjets. This allows pilots to look through a head-up display (HUD) to see Flir imagery of a runway at night and in smoke, haze, rain and snow (but not in large-droplet fog).

The enhanced vision capability is more than just a safety feature. The FAA allows business jet pilots to use EVS images to fly as low as 100 ft. AGL (instead of 200 ft. during a Category-1 approach) before having to see the runway visually. Currently, airline pilots can’t do this. However, the FAA and the European Aviation Safety Agency are considering changing this rule to allow airlines to descend to 100 ft. with EVS, according to several avionics company officials. This could happen as early as next year.

There’s already substantial airline interest in enhanced vision, says Steve Taylor, the BBJ chief pilot. “I’ll wager if the FAA grants that OK to the airlines [for 100 ft. ], they will be beating on our door,” he adds.

Rockwell Collins is working with Boeing on the EVS program. And Max-Viz Inc., of Portland, Ore., is developing a multisensor, uncooled camera to meet a Rockwell Collins specification. It has both a short-wave and a long-wave infrared sensor and a visible-light camera in one unit.

The BBJ also will have a new version of the Rockwell Collins HGS-4000, called the -4000E. This modification of the head-up guidance system includes new hardware and software to allow the display of video imagery from the Flir camera. The BBJ has head-up guidance for the pilot as a standard feature, while the system is optional on the 737NG. Taylor says every avionics system that’s optional on the airline version of the 737 is standard on the BBJ.

Meanwhile, Rockwell Collins just began flight testing the BBJ enhanced vision system on its Sabreliner test­bed, and the EVS will be flown on a customer’s BBJ during the winter. Certification should occur in mid-2008. Should airlines become more interested in having it on a 737NG, it wouldn’t take much additional work to commercialize the system, says Taylor. “The aircraft certification rules are the same—Part 25,” he notes, so the certification effort on the BBJ should transfer easily to the 737NG.

The plan is to display the EVS imagery not only on the HGS for the pilot but also on one of the six Honeywell cockpit displays (the one on the pedestal so the copilot also can see the Flir imagery).

Taylor notes that head-up guidance systems made their first entry at Boeing on the BBJ and then moved to the commercial aircraft production line. But earlier, HUDs were already flying on existing airline aircraft because carriers such as Southwest and Alaska Airlines had installed them as retrofit items.

However, avionics is not the only area where technical innovation started in the BBJ program and was then incorporated on commercial transports. Winglets, a key fuel-saving device, is an example. “In a sense, we are a Skunk Works for commercial airplanes,” says Taylor.

As for the next big thing in business aviation, it will likely be another situational-awareness advance called synthetic vision. A 3D digital map of the terrain and obstacles ahead of the aircraft will be shown to the pilots of Gulfstream business jets soon, thanks to Honeywell. Rockwell Collins is developing a similar system for Bombardier. This Aviation Week & Space Technology pilot saw a Honeywell prototype last year on a Cessna Citation V (AW&ST Oct. 16, 2006, p. 66). Our night flight passed over the Phoenix area where I attended U.S. Air Force pilot training in the early 1970s. The view out the windscreen was often pitch-black, with mountains below shrouded in darkness. But I could see the “synthetic” terrain on the primary flight display created from a database that portrayed the scene ahead as if it were broad daylight. In 1971, a T-38 crashed into a nearby mountain in the era before synthetic vision.

A key question is, How long will it take for the huge safety advance of synthetic vision to show up on commercial flight decks? Since I no longer fly T-38s, I have to travel economy class on narrow- or wide-body jets. If airline pilots had EVS and SVS, I would feel safer as a passenger flying into airports surrounded by high terrain. But as with EVS and the possible FAA rule change on 100 ft., SVS will need a business case to earn its way onto an airline flight deck. At the moment, it’s not clear what that rationale will be.

Taylor says technology specialists at Boeing are looking at synthetic vision, and he believes its adaptation will follow a path similar to the one for enhanced vision. In the business jet market, “the customer base is much more interested in technology and willing to pay for it,” he notes.

Another way the BBJ benefits from 737 avionics is that the standard-fit radar is an airline-class system—Rockwell Collins’ multiscan WXR2100, which is flying with 100 airlines. It’s a more capable system than many of the radars currently installed in business jets. Keith Stover, Rockwell Collins’ radar marketing manager, says the main benefit for BBJ pilots is automatic adjustment of the radar as well as ground-clutter suppression.

In September, Rockwell Collins said it will provide a multiscan radar for bizjets to accommodate the smaller antenna sizes they need of 12 and 18 in. So this is an example of airline-class avionics technology flowing to business aviation by way of the BBJ flight deck. The airline version, which is already standard on the BBJ, has a 28-in. antenna and includes wind shear protection.

Last summer, I flew on a BBJ over the North Atlantic. During the flight, Rockwell Collins radar engineers were perfecting new software to allow the multiscan radar to improve its automatic detection of storms in a particular region (AW&ST July 9, p. 44). This new geographic-discrimination software will be available soon on the BBJ.

Additional fuel tanks are added after the aircraft leaves the factory and goes to DeCrane Aerospace at Sussex County Airport in Georgetown, Del. This is also where the new enhanced vision system will be fitted.
